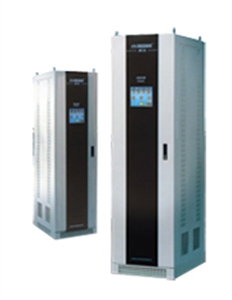

EPS emergency lighting power supply

SKU: FS00019580

Reproduction is welcome and allowed for free circulation only.

Application(EPS emergency lighting power supply)

This kind of emergency lighting (includes metal halogen lamp and sodium lamp ) is suitable for fire occasions or other emergency situations , it is an emergency power supply unit for centralized power supply.

lnstallation(EPS emergency lighting power supply)

Floor type, hanging type and inlay type.

Standby time(EPS emergency lighting power supply)

90min, GB type (it can be set according to design requirement)

Specification (EPS emergency lighting power supply)

0.5KW-10KW
Single-phase input (220V, AC) includes:(Standard type) Hanging type: HBED-0.5KW、1KW、1.5KW、2KW
Inlay type: HBED-0.5KW、1KW、1.5KW、2KW
Floor type :HBED-1KW、1.5KW、2KW、3KW、4KW、5KW、6KW、7KW、 8KW、 9KW、10KW
Three-phase input (380V, AC) includes: (Standard type) Floor type: HBED-0.5KW、1KW、1.5KW、2KW、3KW、4KW、5KW、6KW、 7KW、8KW、9KW、10KW

Characteristics(EPS emergency lighting power supply)

1.Adopt the latest IGBT inversion technology;
2.Adopt mode of centralized power supply, not need special lightings;
3.When offering emergency power supply, it will output sine wave alternating current with stable voltage
and frequency, and without noise or environmental pollution;
4.With functions of fire response, computer monitoring and fire control;
5.Isolating transformer outputs;
6.Liquid crystal displays.

Advantages(EPS emergency lighting power supply)

1.Simple design, convenient for operation;
2.Low cost, reduction of investment;
3.Long service life, the service life of main engine can be more than 20 years;
4.Batteries free from maintenance, can be duty-cycle operated for 300~500 times;
5.Simple management, automatic instantaneous switching, can be unattended operation;
6.Stable illumination intensity, reliable working, and simple maintenance.

Technical parameter of HBED series EPS products(EPS emergency lighting power supply)

Model		HBED-0.5 KW	HBED-1 KW	HBED-1.5 KW	HBED-2 KW	HBED-3 KW	HBED-4 KW	HBED-5 KW	HBED-6 KW	HBED-7 KW	HBED-8 KW	HBED-9 KW	HBED-10 KW
Capacity (KW)		0.5	1.0	1.5	2.0	3.0	4.0	5.0	6.0	7.0	8.0	9.0	10
Input	Max current (A)	3	7	13	20	25	30	35	16	20	25	28	30
	Voltage (V)	Three phases380V 25%or single phase220V 25%
	Frequency (Hz)	50Hz ± 5%
Output	Rated current (A)	2.2	4.5	6.8	9.1	13.6	18.1	22.7	27.2	32	36.4	41	45
	Voltage (V)	Normal conditions: as the same as voltage of commercial power Urgent conditions: 220V 5%
	Frequency (Hz)	Urgent conditions:50Hz 5% Normal conditions: as the same as commercial power
Switching time		Less than 5 seconds( in special case, it may be less than 0.25 second)
Waveform		Urgent condition: sine wave; Normal conditions: as the same as commercial power
Time of emergency power supply		90 minutes (standard)
Overload capacity		When loading 120%, it can work normally
Noise		When there is commercial power, it stays actionless without noise, <55dB (at emergency power supply)
Relative humidity		0~90%
Ambient temperature		-24℃ ~40℃
Altitude		2000m below
Applicable loads		Suitable for various loads like lighting
Weight (kg)		60	130	180	210	360	410	510	620	700	780	850	940
Output loop		3	3	3	3	3	3	3	3	3	3	3	3

When used for emergency lighting ,wiring method of lighting.(EPS emergency lighting power supply)

Output line		Description	Wiring method
Code	Color	Description	Wiring method
L	Red	Output at commercial power; output at no commercial power (offered by emergency power supply);	I
L1	Yellow	No output at commercial power; output at no commercial power (offered by emergency power supply);	II
L2	Green	Output at commercial power; no output at no commercial power (not offered by emergency power supply);	III
L3		Output at commercial power; output by fire response control when commercial power is failure;	IV
		Can be turned on or off when there is commercial power, emergency power supply outputs when commercial power is failure (offered by emergency power supply);	V
N	Blue
PE	Double color of yellow and green
