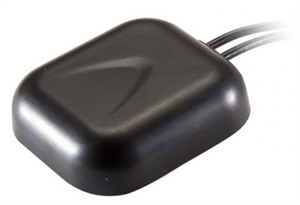

Combination GPS/GSM antennas

SKU: FS00034541

Reproduction is welcome and allowed for free circulation only.

Description complète
Production Corner
Catégories
Distributors
Produits similaires
Purchase History
Questions

SPECIFICATION
Size:59x52x15mm
Dieletric Antenna
Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP

LNA / Filter
LNA Gain(Without cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mAGSM PartFrequency 824~894MHz/1710~1990MHz880~960MHz/1710~1990MHzV.S.W.R 2.0:1Impendence50ohmTypical Gain 2dBiCable RG174 3m/5m or othersConnectorSMA/SMB/MCX or othersWorking Temp -40'C~+85'C
Humidity 55%~75%RH
Waterproof IP67
