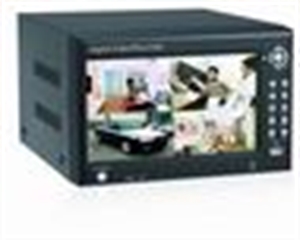

Feature:
1.)H.264 4/8-channel real-time high compression,support dual stream network transmission
2.)Graphics & Windows OSD interface
3.)With 7inch fixed TFT-LCD monitor
4.)Support D1,HD1 and CIF recording resolution
5.)ADPCM audio compression
6.)Support triplex operation:record,playback,net transmission
7.)Support to operate with USB mouse
8.)Support Mobile phone surveillance
9.)Support Network center management system
10.)Support DC12V remote power supply (for JBS-8004AP)
11.)Support to backup & upgrade with USB flash disk
12.)Support to real-time remote view with IE (Internet Explorer)
13.)Support to transmit audio via network
14.)Support PTZ control via built-in RS-485 port
15.)Selectable packing time for recording files
16.)Self-recovery after power reconnected
17.)Support SATA HDD,up to 1TB
18.)Support IR remote control operating
19.)VGA output optional
20.)Dimension:200*130*230mm(W*D*H)

Specifications:

Model No.	8004AP	8008AV
Video Compression	H.264
Video System	PAL / NTSC
Operation System	Linux
Video Input / Output	BNC 4CH inputs / BNC 2CH video output	BNC 8CH inputs / BNC 2CH video output
Audio Compression	8kHz*16bit ADPCM
Audio Input / Output	BNC 4-channel inputs / 1-channel output	BNC 8-channel inputs / 1-channel output
Playback Resolution	PAL: CIF(352*288), HD1(704*288), D1(704*576) NTSC: CIF(352*240), HD1(704*240), D1(704*480)	PAL: CIF(352*288) / NTSC: CIF(352*240)
Display Frame Rate	PAL: 100fps / NTSC: 120fps	PAL: 200fps / NTSC: 240fps
TotalRecord Frame Rate	PAL: 25fps/D1, 50fps/HD1, 100fps/CIF NTSC: 30fps/D1, 60fps/HD1, 120fps/CIF	PAL:200 fps(8*25 fps);NTSC:240 fps (8*30 fps)
Recording Mode	Manual/Schedule/Motion Detection
Searching Mode	By time / By Event / By channel
HDD interface	1 fixed SATA HDD support up to 1TB HDD
Network interface	RJ45, 10M/100M
Network Protocal	Support TCPIP/ UDP/DHCP/DNNS/PPPOE
Network function	IE viewer / Live monitoring / DVR setting / Mobile phone
Mobile phone Surveillance	Included
USB2.0	USB mouse, USB disk (backup, upgrade)
Playback Mode	1-channel / 4-channel	1-channel
PTZ	Built-in RS-485 port, support PELCO-P & PELCO-D
VGA output	Optional
Image quality	D1,HD1,CIF
Language support	Chinese,English
Senor & Alarm I/O	4-channel sensor inputs / 1-channel alarm output	8-channel sensor inputs / 1-channel alarm output
Monitor	7inchfixed TFT LCD monitor
Remote control & mouse	included
Remote Power supply	DC12V Remote Power Supply Optional	N/A
Power Supply	19V / 3.42A DC
Power Comsumption	10~15W
Working Temperature	-10℃ ~ +50℃ RH95% Max
Working Humidity	10% ~ 90%
Dimension	200*130*230mm (W*D*H)
Extension Models	Optional
JBS-8004AVP	JBS-8004AP with VGA
JBS-8008AV	JBS-8008A with VGA
