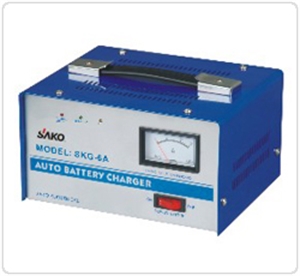

SKC Battery Charger

SKU: FS00019545

Reproduction is welcome and allowed for free circulation only.

Main Features

MAIN FUNCTION
1.Reverse pole protection.
2.Over charge protection.
3.Output current display.
4.With float voltage charging.
5.Application:Automotive repairing factory, diesel motor
set, motorcycle, safty lighting, etc.

Overview

BATTERY CHAGER SPECIFICATION

Model SKC-6A SKC-10A SKC-15A SKC-30A

Nominal Battery Voltage 12V DC 12V DC 12V DC 12V DC

Maximum Output-Current(Amps ave) 　 10A DC 15A DC 30A DC

Total Battery Capacity (recommanded range) 30Ah～150Ah 100Ah～200Ah 200Ah～300Ah 100Ah～500Ah

Maximum total load on batteries during charging 6A DC 10A DC 15A DC 30A DC

Maximum Voltage Electronic Regulation 14.50V ＠ 25℃

Mains Supply Voltage 220～240Vac 50～60Hz

Maximum Consumption 72VA 120VA 180VA 360VA

Tolerance to Mains supply distortion 16％THD

Mains protection Reverse polarity, short circuit

Output Protection short circuit, charging full

Temperature range -10℃～45℃

Metering:Amps Analogue Moving Coil 10A FSD 15A FSD 20A FSD 50A FSD

Cabinet:W×D×H 200×163×125 200×163×125 200×163×125 200×163×125

Connections:input 5A 3pin 2m cable 10A 3pin 2m cable 10A 3pin 2m cable 10A 3pin 2m cable

Connections:output 100A Binding posts 100A Binding posts 100A Binding posts 100A Binding posts

Connections:output cable minimum size 10mm2 Per2m 10mm2 Per2m 10mm2 Per2m 10mm2 Per2m
