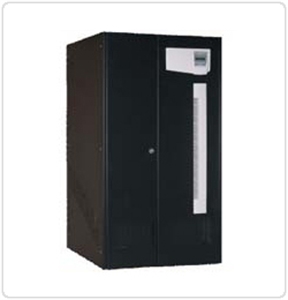

Image de PPS UPS

PPS UPS

SKU: FS00019494
Soyez le premier à commenter ce produit
Reproduction is welcome and allowed for free circulation only.

Main Features
●True on-line double conversion technology
●State of the art IGBT & PWM technology
●Evolution and redundancy guaranteed by Parallel Systems
●Reliability of the battery ensured by Info-Charger
●Built-in maintenance and static by pass
●Galvanic isolation and/or modification for special voltages

●Comprehensive communication with computer & network systems and SNMPsolutions
●Communication with building management systems
●Expandable and variable battery blocks
●THCDL and 12 pulse rectifier options Low installation and operating cost
Overview
Product Requirements PPS310 PPS 315 PPS 320 PPS 330 PPS 340 PPS 360 PPS 380 PPS 3100 PPS 3120 PPS 3160 PPS 3200 PPS 3250 PPS 3300
Power(VA) 10 15 20 30 40 60 80 100 120 160 200 250 300
Power factor 0.8 lagging
Input Voltage 380V/400V/415V 3Phase
Tolerance ±15%
Frequency 50/60Hz
Tolerance ±10%
Output Voltage 380V/400V/415V 3Phase
Tolerance(static condition) +-1%
Tolerance (dynamic condition) +-5%
Harmonic Distortion rate no lineer load <3%
Harmonic Distortion rate on non-lineer load <5%
Crest factor 3
Frequency 50 or 60Hz
Frequency Tolerance ±0.2Hz
Overload
100%-125% load 10min
125%-150% load 1min
Overall Effciency >=90%
Battery 30pcs 12V Batteries 32pcs 12V Batteries
Communication Interface RS232 and Dry Contact, standard and isolated according EN60950
Physical weight without battery(kg) 240 255 270 285 490 570 600 750 810 970 1170 1535 1620
Dimensions(mm) W*D*H 490*650*1190 565*820*1400 720*800
*1450		 1192*875*1720 1565*925*1880
Environment Audible Noise <55dBA <60dBA 63 to 66dBA <70dBA
Operating Temperature 0-40℃
Relative Humidity(non condensing) 0-95%
Standards EN 50091-1 (safety),EN 50991-2(EMC),IEC 62040-3 (class VFI), IP20
Options Battery Cabinet, Parallel Kit, SNMP Kit, Separated Mains Input, Remote Contor Panel,Filters, 12 publise rectifier.Additional Battery Charger, Battery Protection, Temperature compenstation,Teleservice, Modem, Rs 485, Econ-Mode
